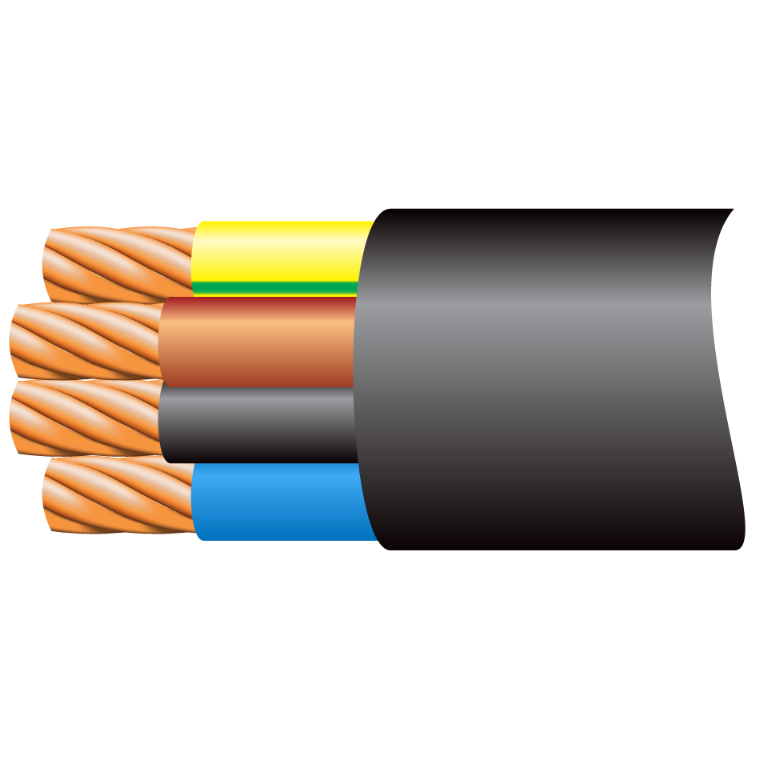

1.0MM 4C FLEX BLACK
Ordinary Duty 100m Reel
Additional information
| Product Name | Cable |
|---|---|
| Outer Sheath Material | PVC |
| Unit Weight | 11 kg |
| LU1085 Approved? | N |
| Conforming Standard | |
| CE Approved | N |
| Voltage Rating | 300|500 V |
| Maximum Temperature Rating | 70 Degrees C |
| Minimum Temperature Rating | -15 Degrees C |
| Conductor Size | 1 mm2 |
| Cable Diameter | 7.1-9.0 mm |
| Drum Length | 100 Metres |
| Outer Sheath Colour | Black |
| Core Colours | |
| Type Name | Wiring |
| Earthed Metallic Covering | N |
| Magnetic armour | N |
| Flexibility class | 5 |
| Minimum Bending Radius | 42.6-54 |
| Fire Resistant | N |
| Armoured | N |
| Insulation Type | PVC |
| Conductor Construction | Plain Annealed Flexible |
| Conductor Material | Copper |
| Earth Core | Y |
| Core Identification | Coloured |
| Number of Cores | 4 |
| Weight | 97.8 Kg/Km |
