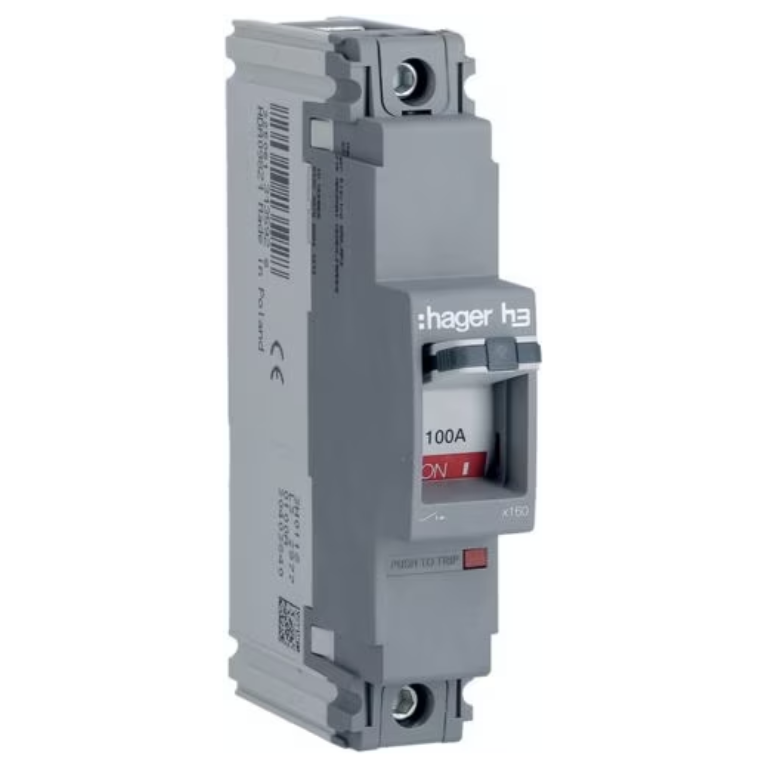

Hager HDA098Z MCCB SP 100A 18kA
Fixed Thermal Magnetic
Additional information
| Product Name | Circuit Breaker |
|---|---|
| Type Name | MCCB |
| Pole Configuration | SP |
| Mounting | DIN Rail |
| Short Circuit Rating | 18 kA |
| Cable Capacity | 95 mm2 |
| Height | 130 mm |
| Width | 25 mm |
| Depth | 68 mm |
| Current Rating | 100 A |
| Voltage | 220 | 440 V |
| Standards | IEC 60947-2 |
| Unit Weight | 0.29 kg |
