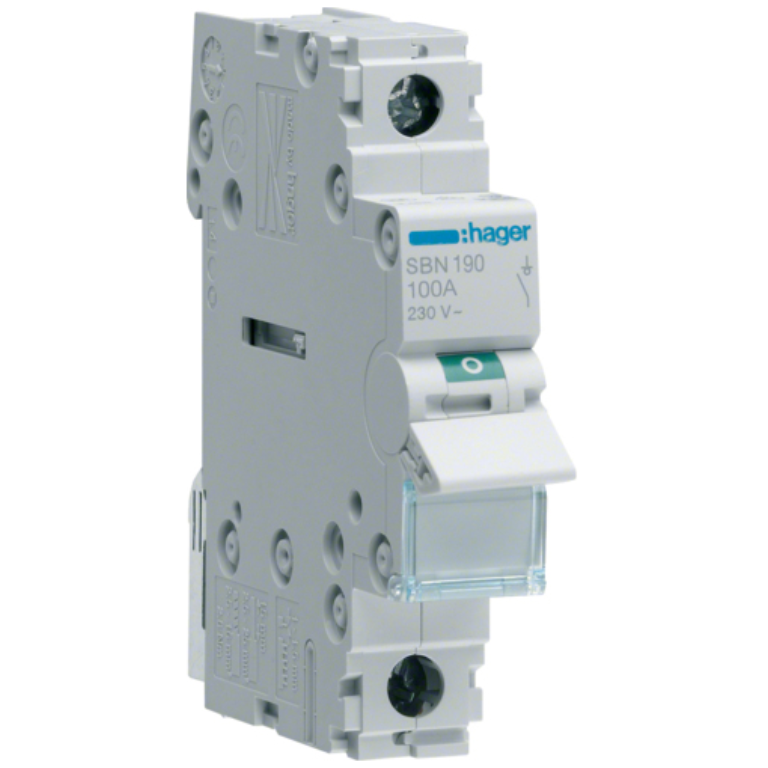

HAGER SBN190 SWITCH DISC
Additional information
| Product Name | Switch Disconnector |
|---|---|
| c/w Fuses | N |
| Rated Short Circuit Withstand Current | 1.2 kA |
| Voltage Rating | 230 V |
| Rated Current | 100 A |
| Depth | 68 mm |
| Width | 17.5 mm |
| Length | 83 mm |
| Material | Plastic |
| Flexible | N |
| Type Name | DIN Rail |
| Enclosed | N |
| Lockable? | Y |
| Switched | Y |
| Ingress Protection | IP20 |
| Terminal Type | Screw |
| Mounting Type | Clip-On/DIN Rail |
| Number of Ways | 1 |
| Number of Poles | 1P |
| Standards | IEC60947-3 |
