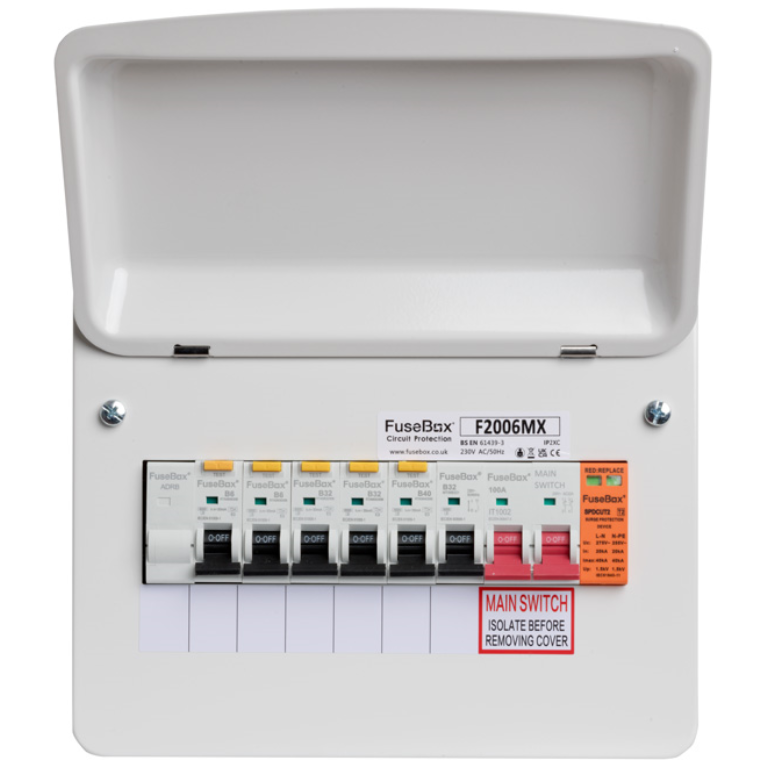

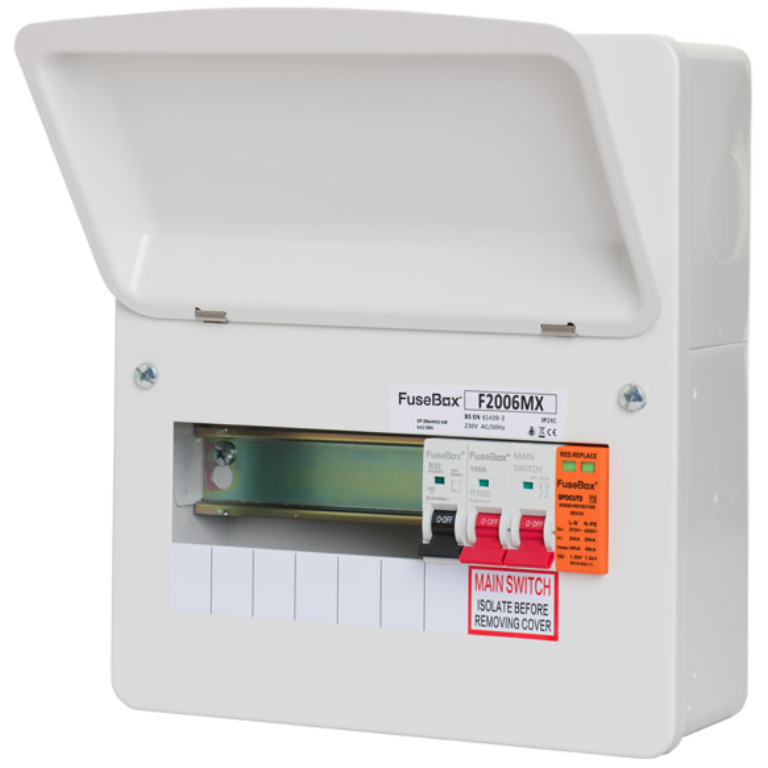

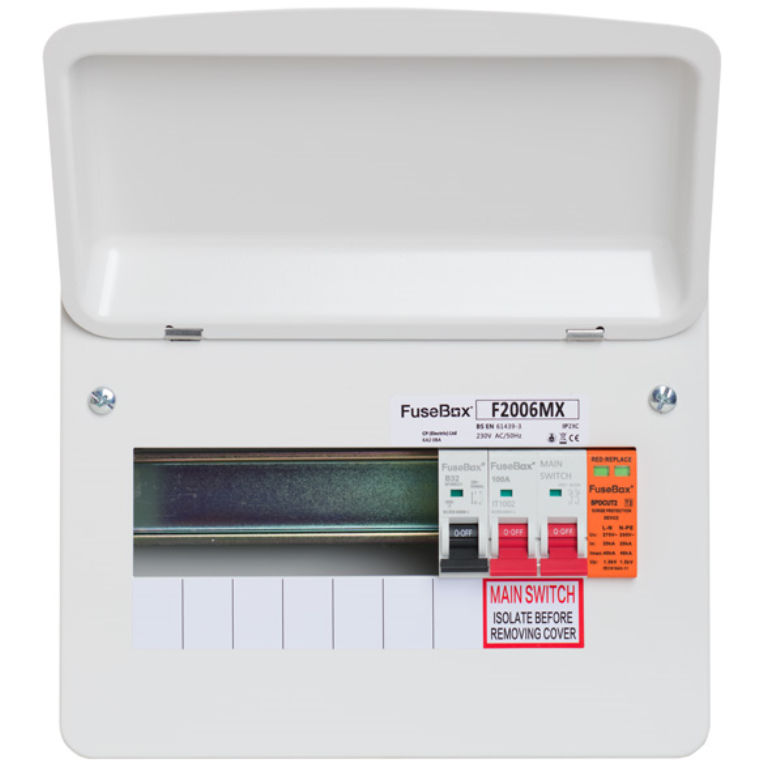

FUSEBOX F2006MX CON UNT
Additional information
| Product Name | Consumer Unit |
|---|---|
| Surge Protector Type | Type 2 |
| 18th Edition Compliant | Y |
| Number of Phases | Single |
| Depth | 113 mm |
| Width | 234 mm |
| Height | 259 mm |
| Body Finish | Powder Coated |
| Body Colour | Cream RAL 9001 |
| Body Material | Steel |
| High Integrity | No |
| Outgoing Devices Included | N |
| RCD s Included | N |
| Surge Protection Included | Yes |
| Current Rating (max) | 100 A |
| Split Load | N |
| Ingress Protection | IP2XC |
| Mounting | Surface |
| Metered | N |
| Door/Lid Type | Solid |
| Outgoing Ways | 6 Way |
| Pole Configuration | Double Pole (2P) |
| Incomer Current Rating | 100 A |
| Incomer Type | Switch Disconnector |
| Incomer Included | Y |
| Installation Type | Domestic |
| Rated Voltage | 230 V |
| Standards | BS EN 61439-3 |
