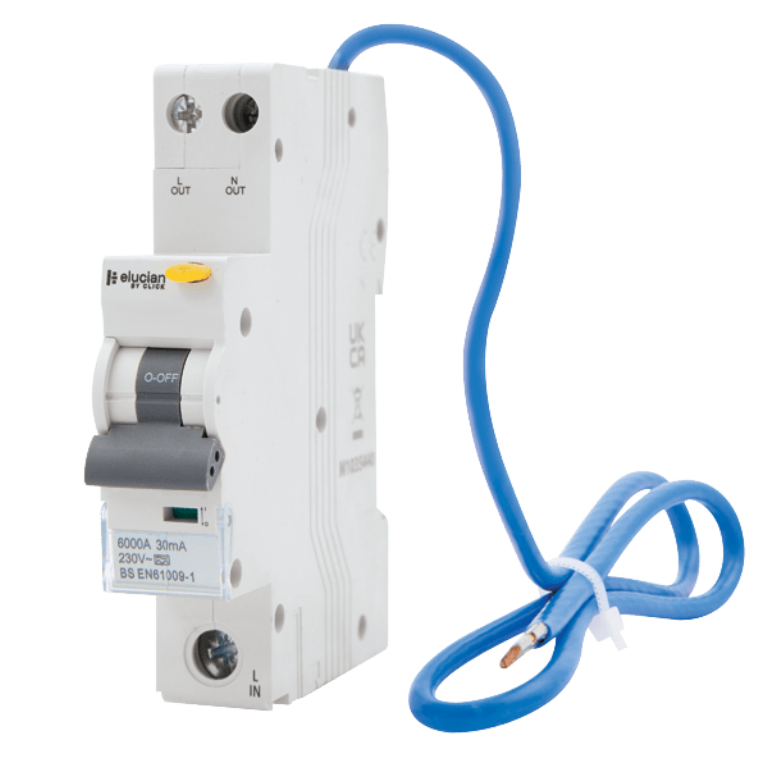

CLICK CU1RCBO16B RCBO B
Additional information
| Product Name | RCBO |
|---|---|
| Cable Capacity | 25 mm2 |
| Standards | BS EN 61009-1 |
| Voltage | 240 V |
| Current Rating | 16 A |
| RCD Type/Class | A |
| Operating Temperature Range | -25|40 Degrees C |
| Depth | 76.6 mm |
| Width | 17.8 mm |
| Height | 91.8 mm |
| Colour | Light Grey |
| Type Name | Current |
| Sensitivity | 30 mA |
| Short Circuit Rating | 6 kA |
| Trip Type | Type B |
| Ingress Protection | IP20 |
| Mounting | DIN Rail |
| Number of Modules | 1 |
| Pole Configuration | SP+N |
| Qualifier | RCBO Devices |
| Warranty | 3 Years |
