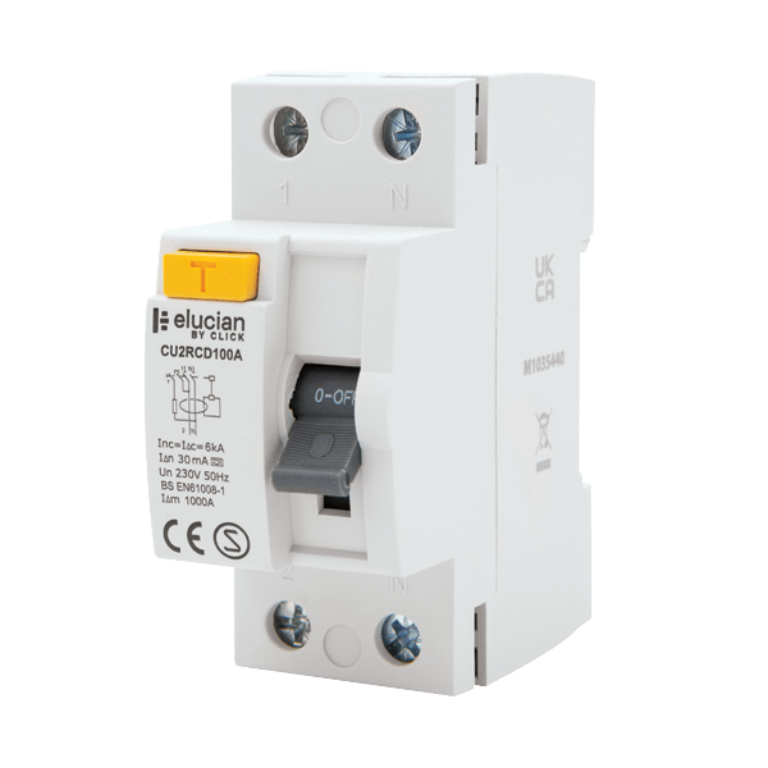

CLICK CU2RCD100A RCD 2 P
Additional information
| Qualifier | RCCB Devices |
|---|---|
| Pole Configuration | Double Pole (2P) |
| Ingress Protection | IP20 |
| Sensitivity | 30 mA |
| Colour | Light Grey |
| Cable Capacity | 35 mm2 |

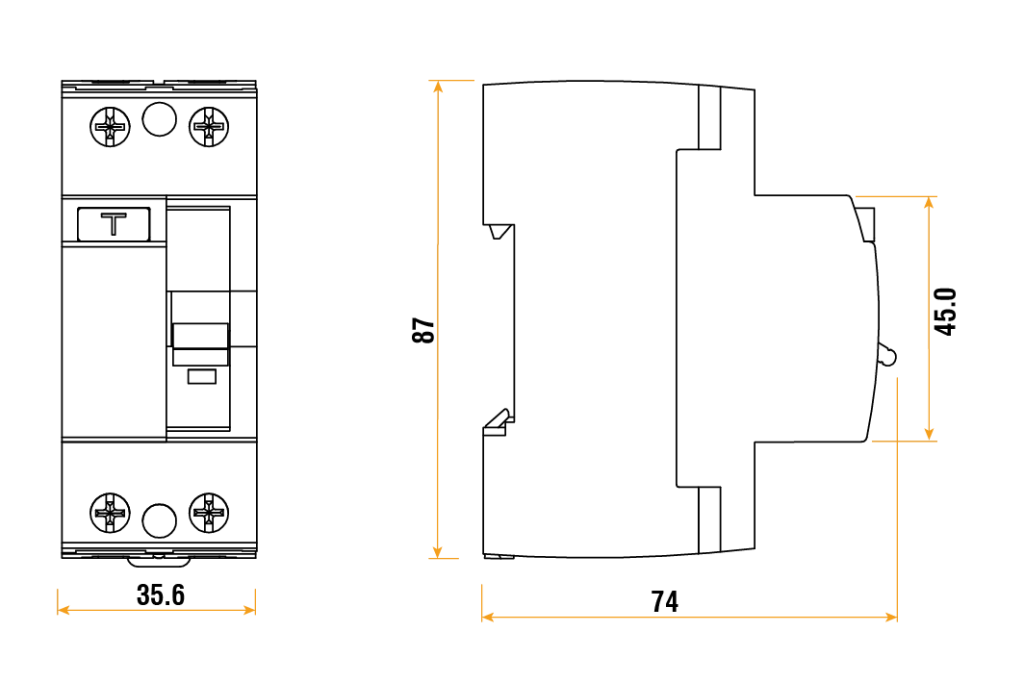

| Height | 87 mm |
| Width | 35.6 mm |
| Depth | 74 mm |
| Operating Temperature Range | -25|40 Degrees C |
| RCD Type/Class | A |
| Current Rating | 100 A |
| Voltage | 230 V |
| Standards | BS EN 61008-1 |
| Warranty | 3 Years |
