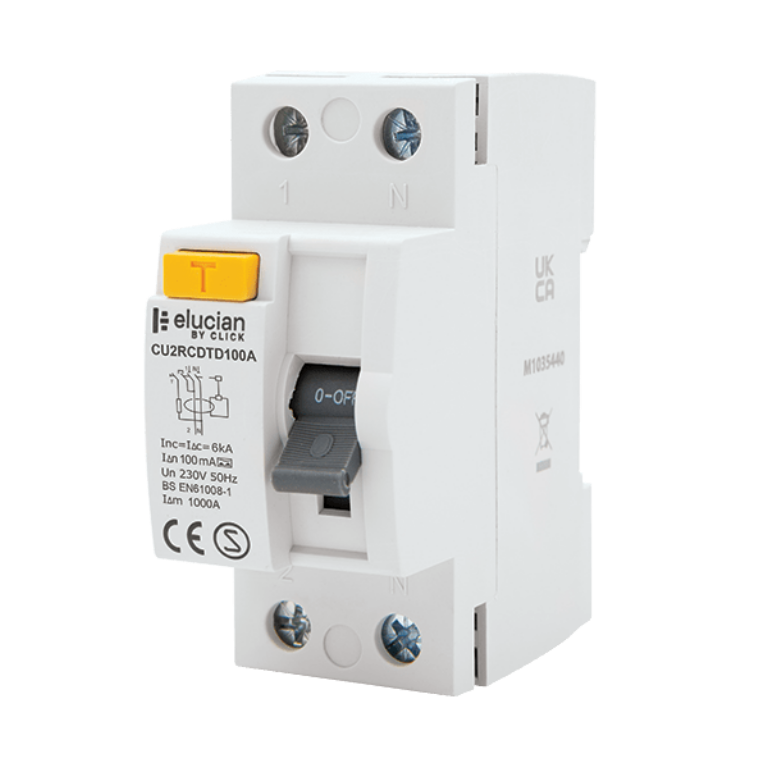

CLICK CU2RCDTD100A RCD 2
Additional information
| Type Name | Time Delay |
|---|---|
| Qualifier | RCCB Devices |
| Pole Configuration | Double Pole (2P) |
| Ingress Protection | IP20 |
| Sensitivity | 100 mA |
| Colour | Light Grey |
| Cable Capacity | 35 mm2 |
| Height | 87 mm |
| Width | 35.6 mm |
| Depth | 74 mm |
| Operating Temperature Range | -25|40 Degrees C |
| RCD Type/Class | S |
| Current Rating | 100 A |
| Voltage | 230 V |
| Standards | BS EN 61008-1 |
| Warranty | 3 Years |
