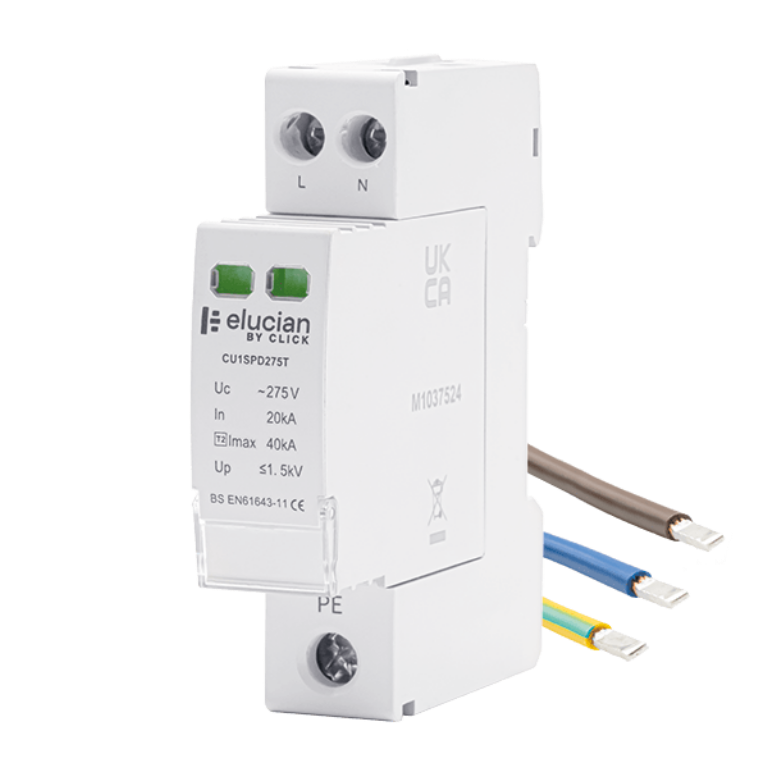

CLICK CU1SPD275T SPD 2 P
c/w 6mm2 Tails
Additional information
| Product Name | Surge Protection Device |
|---|---|
| Depth | 70 mm |
| Standards | BS EN 61643-1-11 |
| CE Approved | N |
| Maximum Discharge Current | 40 kA |
| Nominal Discharge Current | 20 kA |
| Maximum Operating Temperature | +70 Degrees C |
| Minimum Operating Temperature | -40 Degrees C |
| Maximum Cable Size | 16 mm2 |
| Minimum Cable Size | 4 mm2 |
| Width | 18 mm |
| Type Name | Kit |
| Height | 90 mm |
| Colour | Light Grey |
| Surge Protector Type | Type 2 |
| Plug-In Module | Y |
| Number of Poles | 2P |
| Status Indicator | Y |
| Alarm Output | N |
| Ingress Protection | IP20 |
| Warranty | 3 Years |
