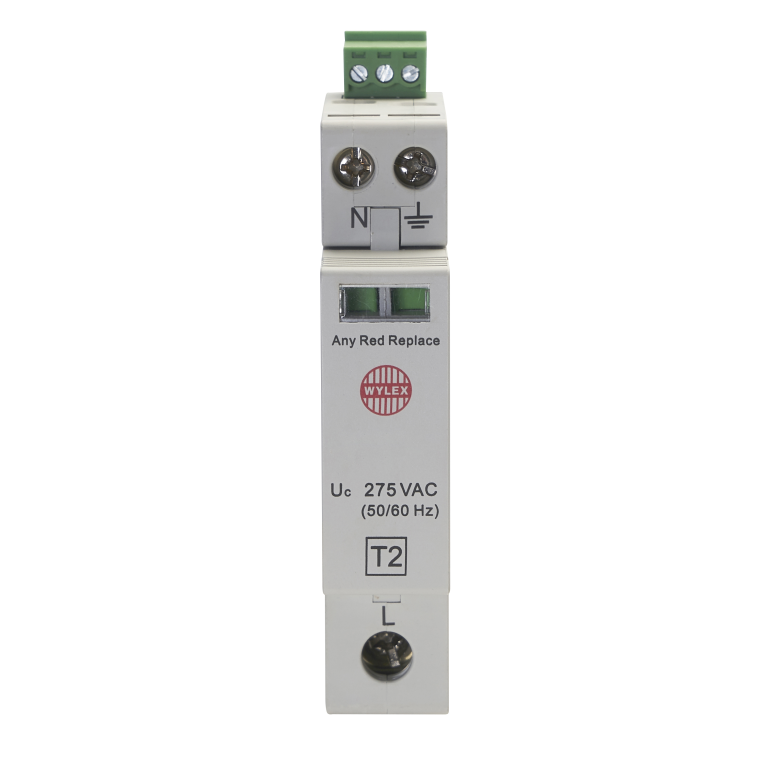

WYLEX NMT2SPD3W 1 SPD 1
Single Phase 3 Wire Systems
Additional information
| Product Name | Surge Protection Device |
|---|---|
| Height | 85 mm |
| UKCA Approved | Y |
| CE Approved | Y |
| Supply Frequency | 50 Hz |
| Maximum Discharge Current | 40 kA |
| Nominal Discharge Current | 20 kA |
| Rated Short Circuit Withstand Current | 25 kA |
| Nominal Voltage | 275 V |
| Maximum Cable Size | 25 mm2 |
| Depth | 70 mm |
| Material | Plastic |
| Type Name | Kit |
| Colour | White |
| Number of Modules | 1 |
| Voltage Type | AC |
| Surge Protector Type | Type 2 |
| Plug-In Module | N |
| Mounting Type | DIN Rail |
| Status Indicator | Y |
| Alarm Output | N |
| Ingress Protection | IP20 |
| Standards | IEC EN 61643-11 |
