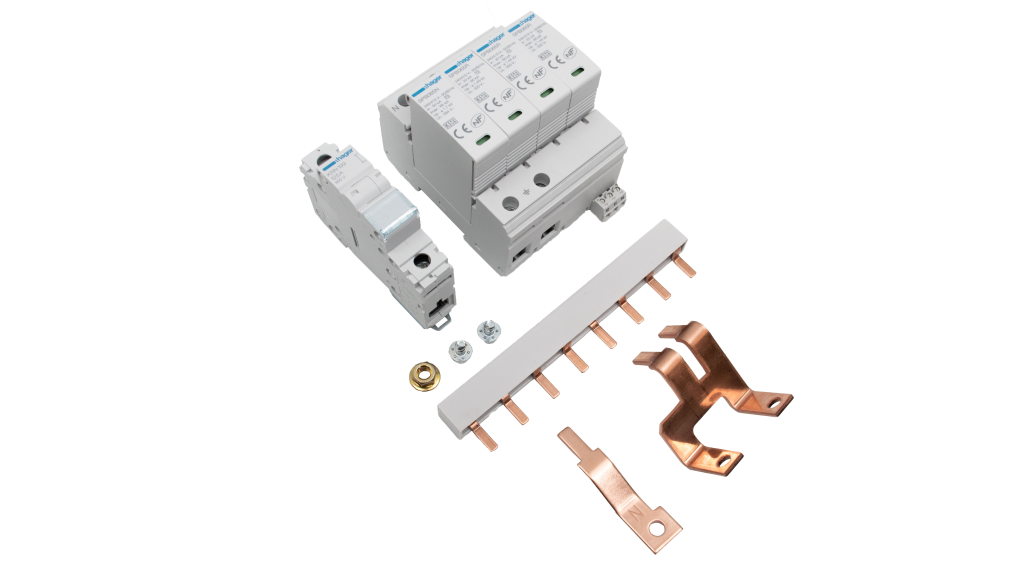

HAGER JK102SPD SURGE PRO
Additional information
| Product Name | Surge Protector |
|---|---|
| Material | Plastic |
| CE Approved | N |
| Supply Frequency | 50 Hz |
| Maximum Discharge Current | 40 kA |
| Nominal Discharge Current | 20 kA |
| Rated Short Circuit Withstand Current | 25 kA |
| Nominal Voltage | 230VAC/400VAC V |
| Depth | 65.7 mm |
| Width | 71 mm |
| Height | 89.8 mm |
| Colour | Black |
| Type Name | Kit |
| Number of Modules | 5 |
| Voltage Type | AC |
| Surge Protector Type | Type 2 |
| Plug-In Module | Y |
| Mounting Type | DIN Rail |
| Number of Poles | 4P |
| Status Indicator | Y |
| Alarm Output | N |
| Ingress Protection | IP20 |
| Qualifier | 125A |
| Standards |
