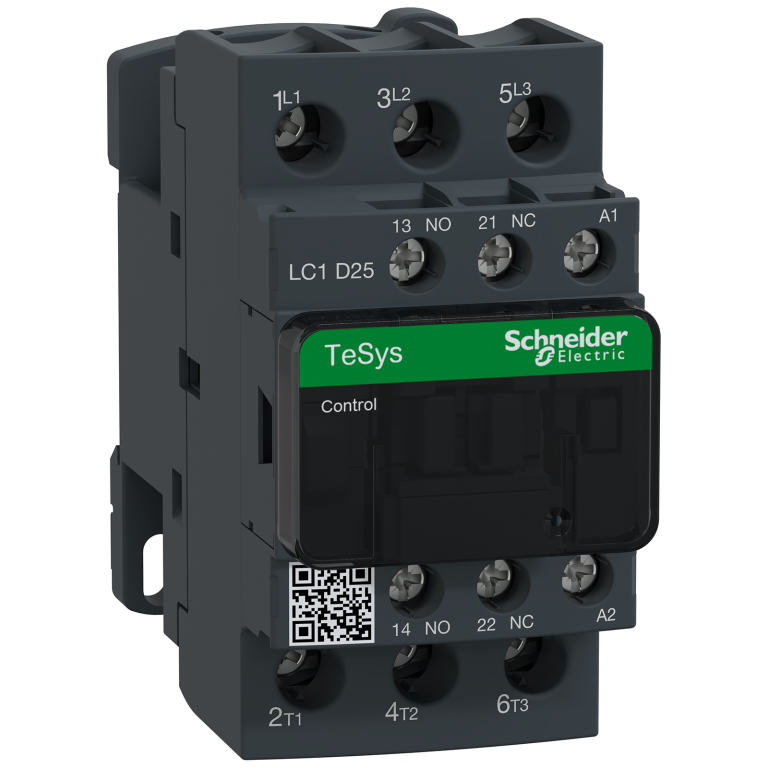

Schneider LC1D25U7 Contc 25A 240V50/60Hz
Additional information
| Product Name | Contactor |
|---|---|
| Depth | 92 mm |
| Standards | |
| Rated Short Circuit Withstand Current | 1s for 380A kA |
| Breaking Current | 0.45 kA |
| Motor Rating | 15 Kw |
| Voltage Rating | 240 V |
| Rated Current | 25 A |
| Width | 45 mm |
| Type Name | Terminal |
| Length | 85 mm |
| Switch Position | 1NO + 1NC |
| Terminal Type | Screw Clamp |
| Mounting Type | |
| Ingress Protection | IP2X |
| Number of Contacts | 3 |
| Number of Poles | 3P |
| Unit Weight | 0.37 kg |
