Gewiss GW61048H Plug 2P+E 63A 230V 6h
IP67 Straight
Additional information
| Product Name | Plug |
|---|---|
| Mounting | Plug-In |
| CE Approved | Y |
| Frequency | 50/60 Hz |
| Current Rating | 125 A |
| Voltage | 230 V |

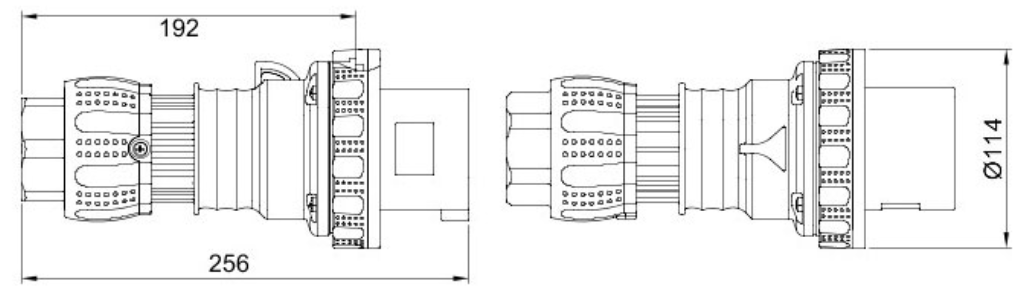

| Length | 256 mm |
| Diameter (mm) | 114 mm |
| Colour | White/Blue |
| Material | Technopolymer |
| Low Voltage? | N |
| Pole Configuration | Double Pole + Earth (2P+E) |
| Ingress Protection | IP66 |
| Number of Entries | 1 |
| c/w Cable | N |
| Clock Reference | 6 |
| Pin Shape | Round |
| Number of Pins | 3 |
| Number of Ways | 1 |
| Number of Gangs | 1 |
| Standards | IEC/EN60309 |
