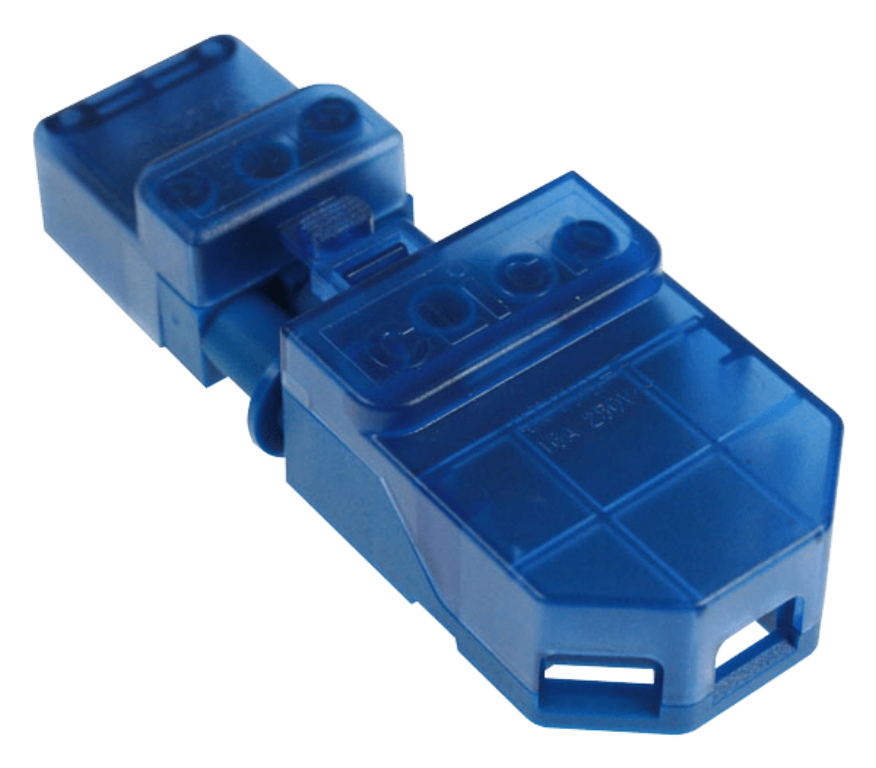

Click CT101C Flow Connector 20A 250V
Additional information
| Product Name | Connector |
|---|---|
| Colour | Blue |
| Warranty | 10 Years |
| Standards | BS 5733: 2010 +A1: 2014 |
| Temperature Range | -5|40 Degrees C |
| Current Rating | 20 A |
| Voltage | 250 V |
| Depth | 30|40 mm |
| Width | 52|68 mm |
| Length | 22 mm |
| Material | Nylon |
| Type Name | Male and Female |
| Main Terminal Capacity | 3 x 2.5 mm2 |
| Pre-wired | N |
| c/w LSF Flex | N |
| c/w Plug & Socket | Y |
| Terminal Rating | 20 A |
| Ingress Protection | IP20 |
| Number of Poles | 3P |
| Qualifier | Click Flow Pull-Apart Connectors CT101C 20A 3 Pole Complete Connector Blue |
| Unit Weight | 0.055 kg |
