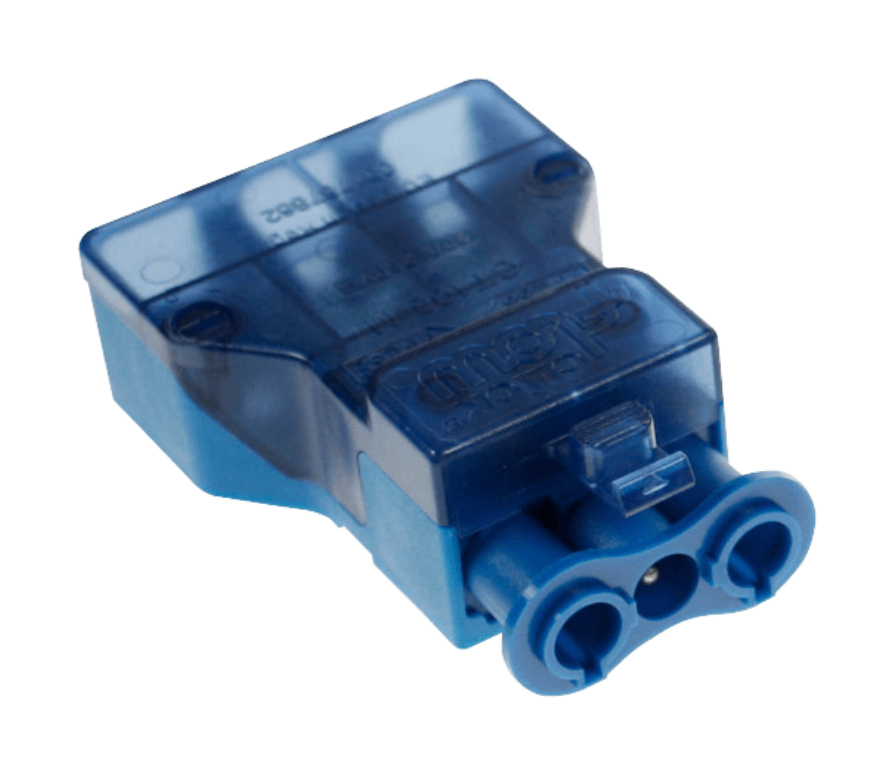

Click CT105C Flow Connector 3 Pole 20A
CT105M & CT105F
Additional information
| Product Name | Connector |
|---|---|
| Material | Nylon |
| Warranty | 10 Years |
| Standards | |
| Temperature Range | -5|40 Degrees C |
| Current Rating | 20 A |
| Voltage | 250 V |
| Depth | 36 mm |
| Width | 79 mm |
| Length | 23|24 mm |
| Colour | Blue |
| Main Terminal Capacity | 2.5 (Max.) mm2 |
| Type Name | Male and Female |
| Pre-wired | N |
| c/w LSF Flex | N |
| Shape | Round |
| c/w Plug & Socket | Y |
| Terminal Rating | 20 A |
| Ingress Protection | IP20 |
| Number of Poles | 3P |
| Number of Outlets | 1 |
| Number of Pins | 3 |
| Qualifier | Click Flow Pull-Apart Connectors CT105C 20A 3 Pole Complete Push-Fit Connector Blue |
| Unit Weight | 0.055 kg |
