Quickwire QSL34 Junction Box 3 Plate
for 1mm & 1.5mm T&E Cable
Additional information
| Product Name | Junction Box |
|---|---|
| Length | 84 mm |
| CE Approved | Y |
| Frequency | 50 Hz |
| Current Rating | 16 A |
| Voltage | 250 V |
| Depth | 31 mm |
| Width | 23 mm |
| Colour | White |

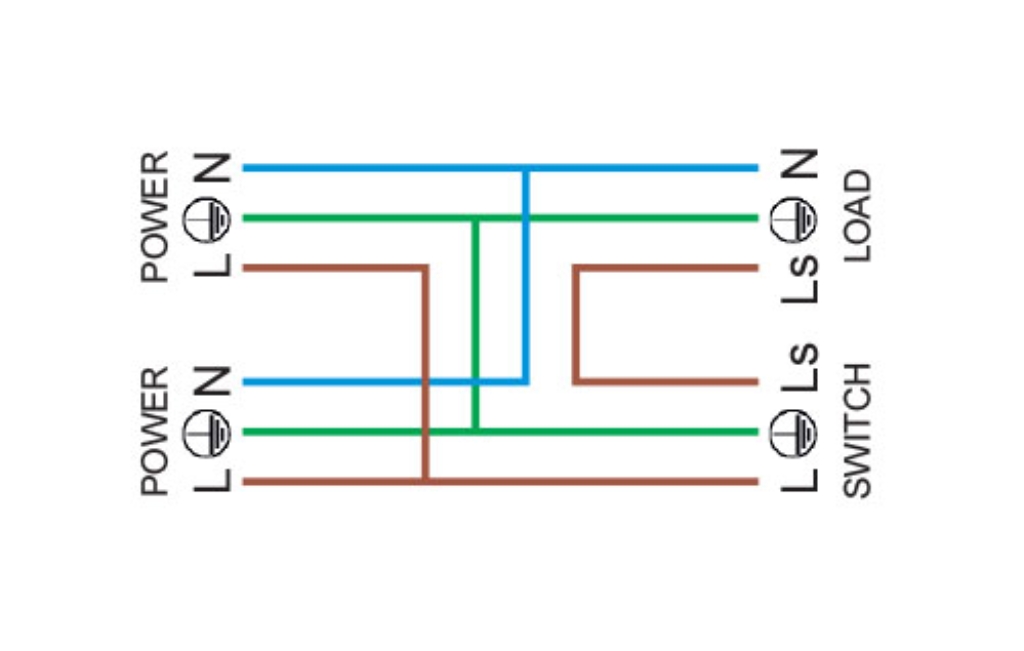

| Qualifier | Switch and Load |
| Material | Plastic |
| Ingress Protection | IP30 |
| Number of Poles | 3P |
| Cable Terminal Capacity | 1.0-1.5 mm2 |
| Termination Type | Spring Clamp |
| Mounting | In-line |
| Extra Information | 4 Connection Pre-Wired |
| Standards |
