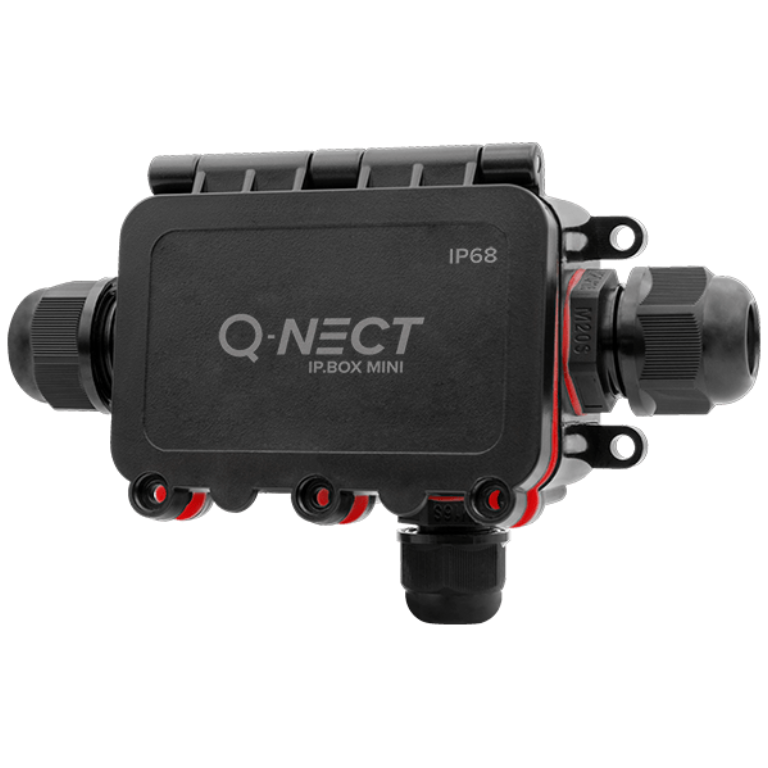

Unicrimp QOE8343BLK Conn Box 4P 3Way Blk
M16+M20
Additional information
| Product Name | Box |
|---|---|
| Type Name | Connection |
| Description | The connection box is suitable for up to 4 core cables with a diameter between 5mm and 8mm and 3 co |
| Maximum Rated Current | 24 A |
| Number of Poles | 4P |
| Ingress Protection | IP68 |
| Rated Operational Voltage | 450 V |
| Material | Polycarbonate PC |
| Colour | Traffic Black RAL 9017 |
| Length | 141 mm |
| Width | 88 mm |
| Depth | 37 mm |
| Operating Temperature Range | -40|105 Degrees C |
| Standards | |
| Warranty | 1 Years |
